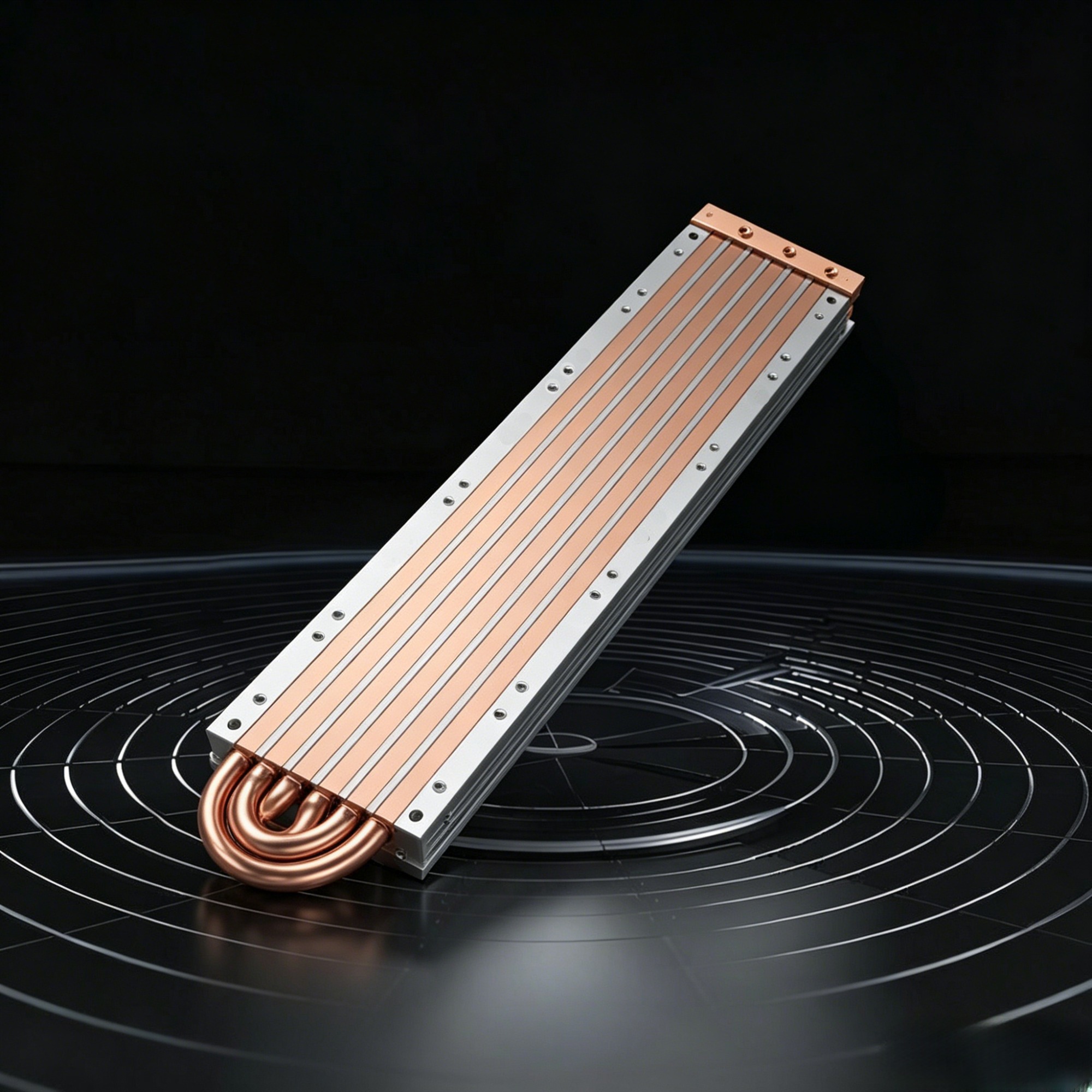

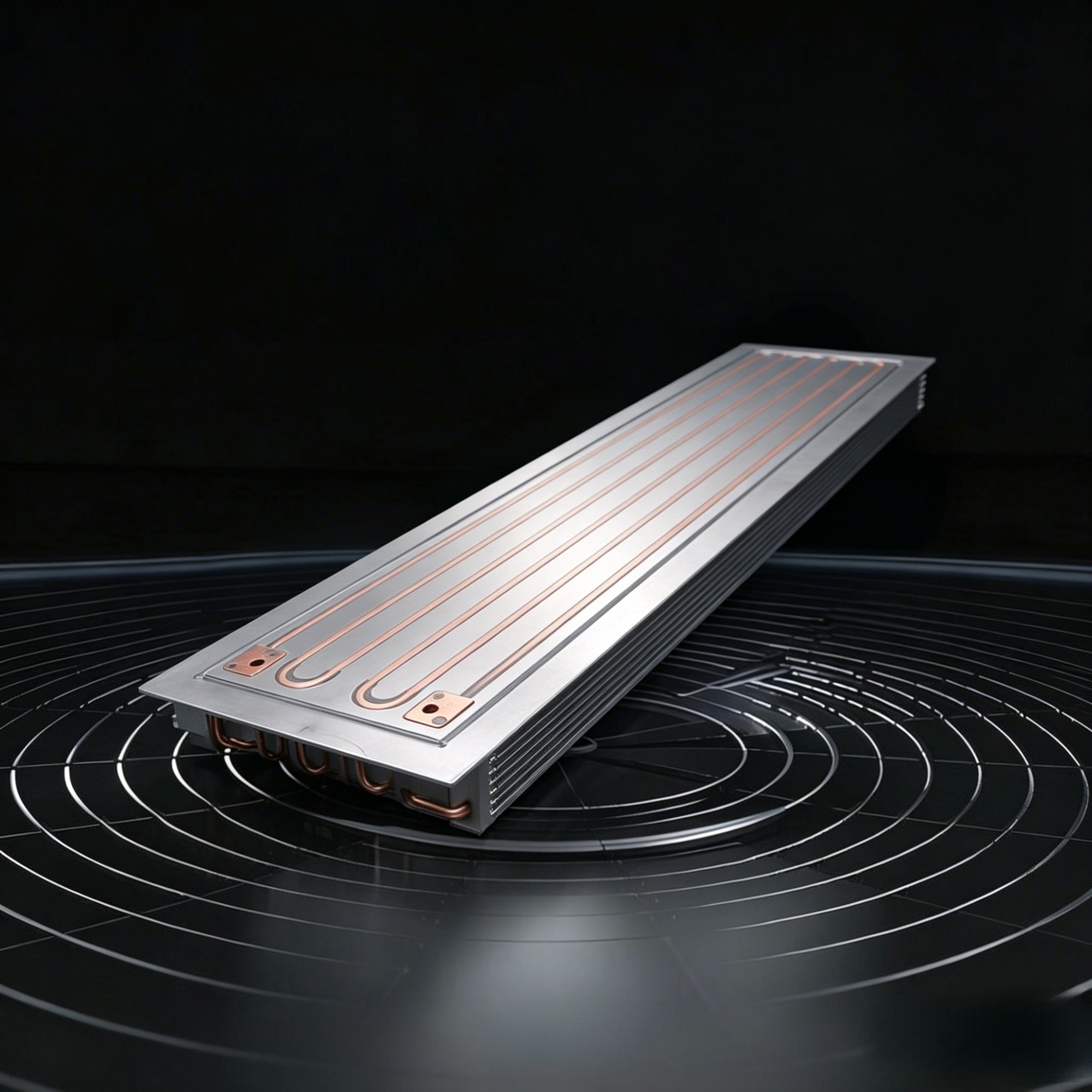

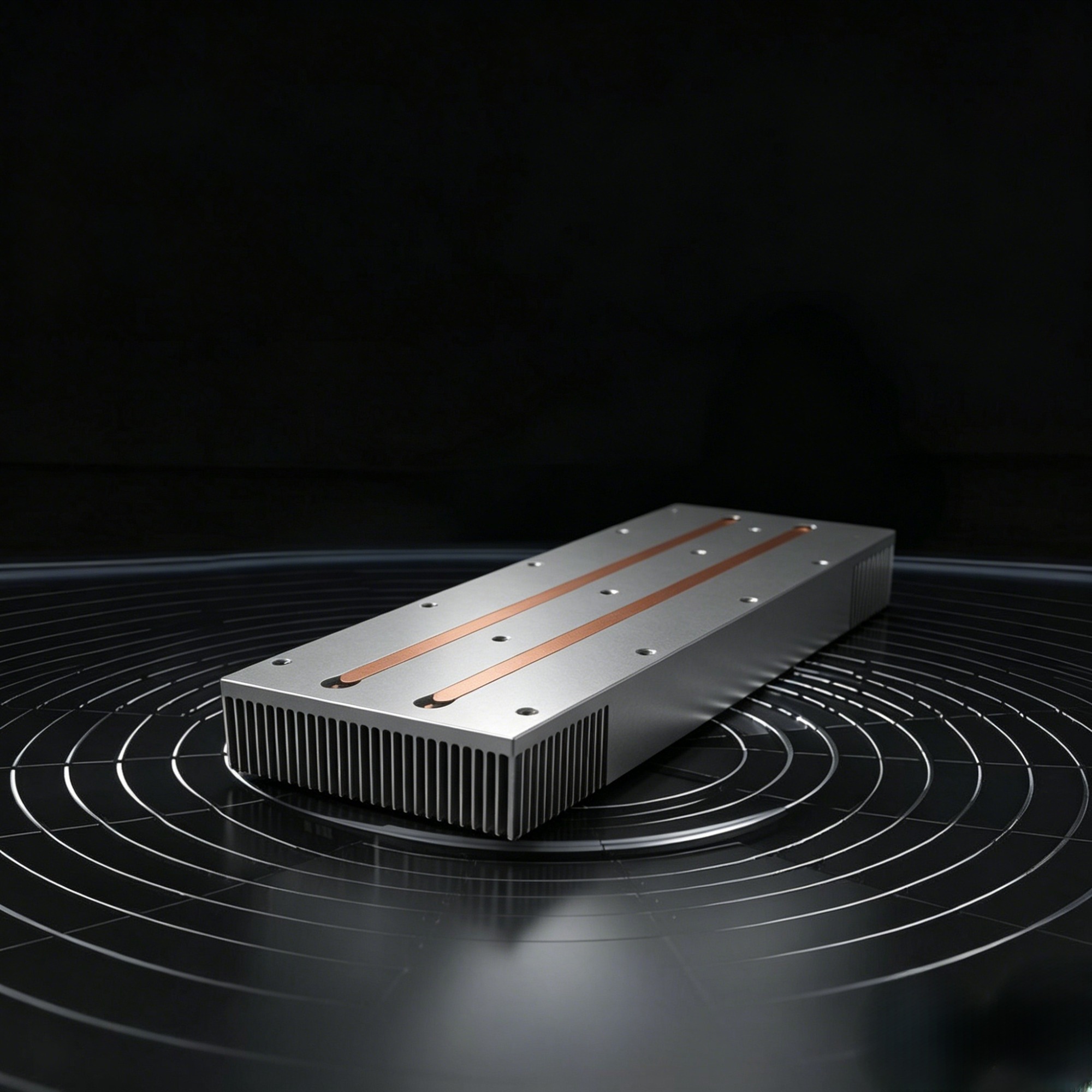

High-performance copper-aluminum composite water cooling radiators engineered for high-power thermal management.
Suzhou Krosino provides high-precision manufacturing for global industrial requirements. We specialize in custom CNC milling and assembly of liquid cold plates, utilizing 6061-T6 aluminum alloy for its superior structural rigidity and TP2 high-purity seamless copper tubes for maximum thermal conductivity (401 W/m·K).
Core Materials: 6061-T6 Aluminum (Base) + TP2 Oxygen-Free Copper (Tube).
Our manufacturing workflow includes precision CNC milling with ±0.03mm tolerance for tube grooves, followed by either high-pressure mechanical pressing or vacuum brazing to achieve a zero-gap metallurgical bond. Every unit undergoes 1.6MPa hydrostatic pressure testing for 30 minutes.
Q: How does vacuum brazing improve thermal performance?
A: Vacuum brazing creates a permanent metallurgical bond between the copper tube and aluminum base, eliminating air gaps and drastically reducing contact thermal resistance compared to mechanical press-fit methods.
Q: What are the typical industry pain points in cooling plate assembly?
A: Common issues include internal leakage and structural warping. We address these through rigorous CMM dimensional inspections and stress-relief machining protocols.
Q: Can these plates be used with glycol coolants?
A: Yes, our plates are compatible with industrial glycols, deionized water, and various cooling media, provided the internal surfaces are properly passivated.
